Product Parameters
Specification
| Application technology | Doppler radar |
| Transmission frequency | 24.125 GHz |
| Transmission power | <20dBm |
| Detection height | 2.0m to 9.0m |
| Angle adjustment | 0°-180° longitudinal |
| Detection speed | 5cm/s~25km/s |
| Detection area(30°Angle) | 3.0m*3.5m @ height: 2m |
| 6.5m*8.5m @ height: 9m |
| Operation voltage | 12~36 VDC |
| Operation current | Max. 75 mA |
| Power frequency | 50 hz |
| Temperature range | -30ºC to+60ºC |
| Relative humidity | 0% to 95%, no condensation |
| Waterproof grade | IP65 |
| Relay output | dry contact, 2A@12V |
| External dimensions | 162mm × 110mm × 65mm |
| Cable length | 7 m |
| Sensor weight | 400 g |
Our Advantages
Microwave motion sensor Detection Area
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.
Dual Relays Outputs

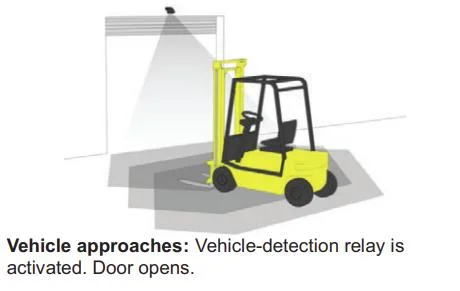

It is a fully customizable, hands-free radar motion sensor equipped with dual relays: Vehicle-detection relay active
Person-detection relay active
Vehicle-detection relay and person-detection relay are both active
The below setting shows only active vehicle-detection mode, not for person-detection. it can be set according to your project requirements.
Direction Recognition
It can be set the direction detection:
1. motion forward and close to the sensor
2. backward movement away from the sensor
3. Forward and backward.
Energy Savings It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
Speed up workflows Open doors without having to stop and push a button. Install or Retrofit both dock and pedestrian doors with automated solutions.
Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.
Remote Control Adjustments Remote control programming enables the user to quickly and safely make changes from the ground.

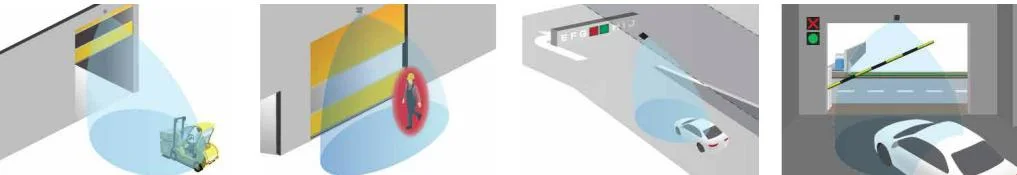

Applications
Factory entrances

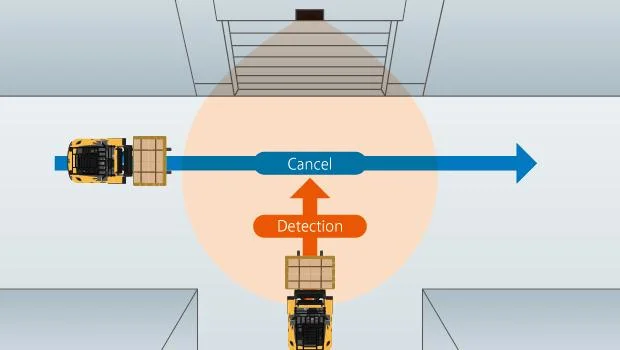

Pedestrian and parallel traffic rejection
Parking garage detection
Barrier arm activation

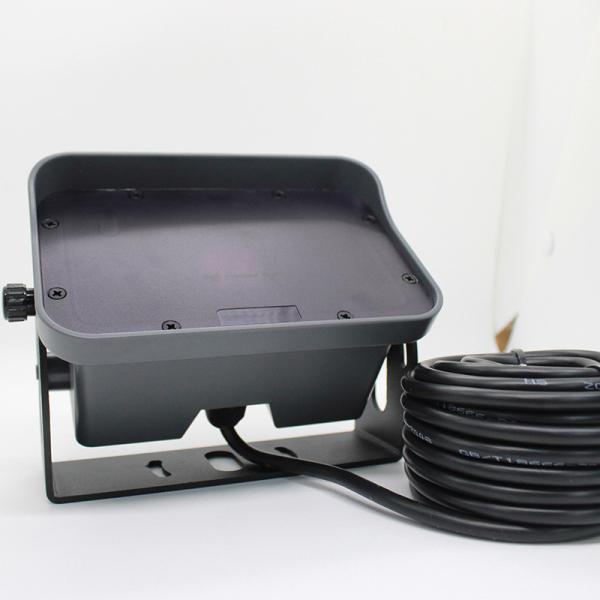

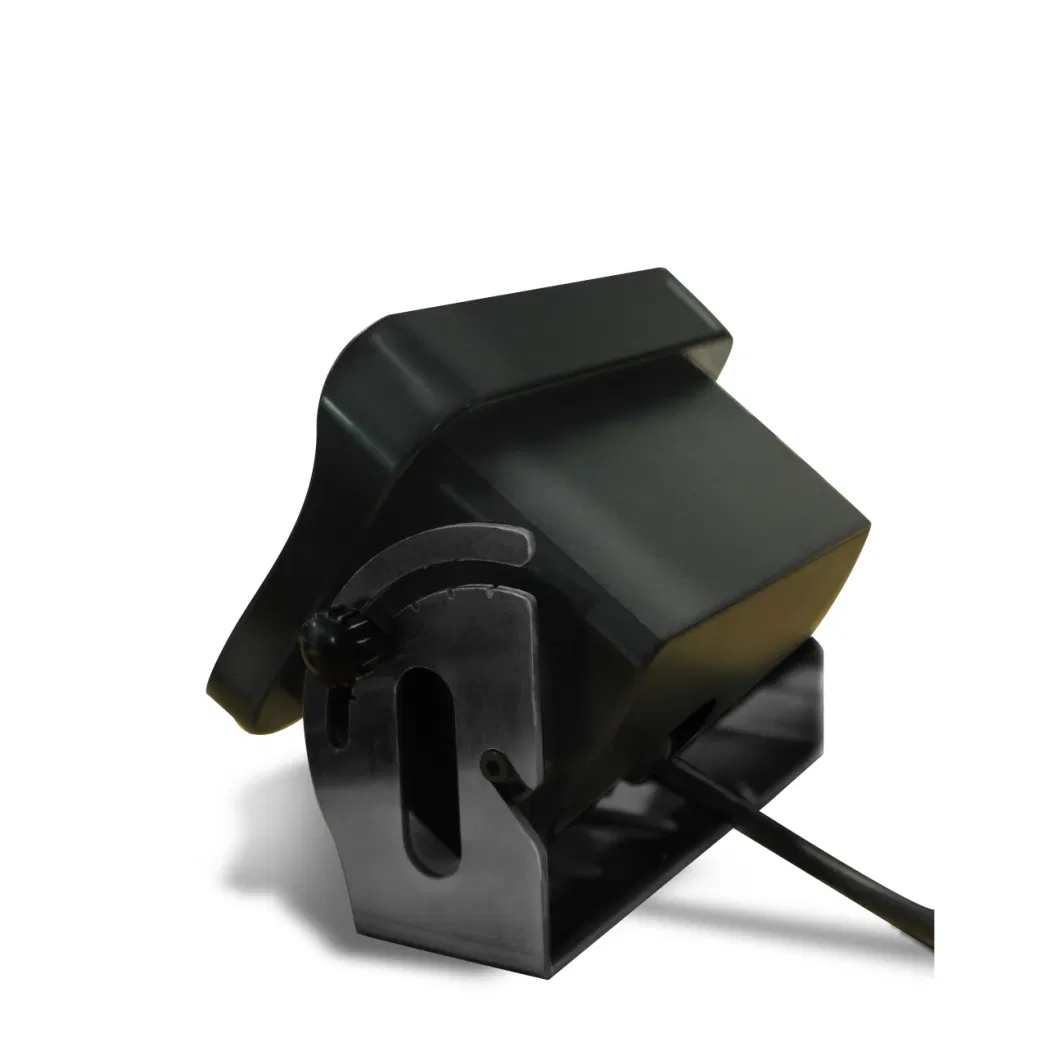

Details of NobTra Radar
